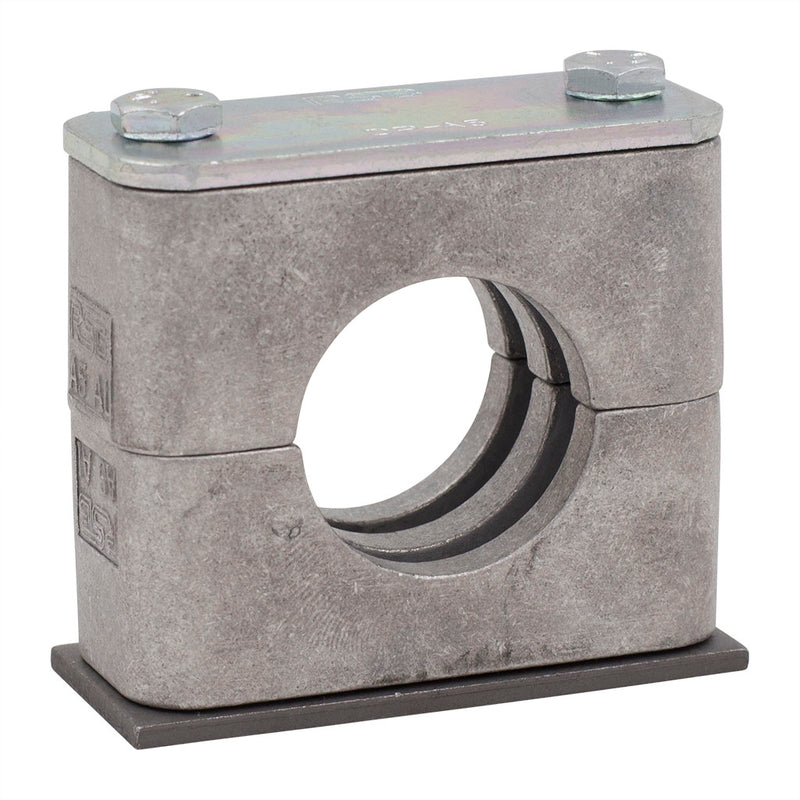

1/4" Tubing Clamp Light Series Aluminum Body Carbon Steel Hardware

Name: 1/4" Tubing Clamp Light Series Aluminum Body Carbon Steel Hardware
Brand: The Clamp Co
SKU: RAAR3-106,4/UNC
Price: 9.51 USD
Availability: InStock

SKU RAAR3-106,4/UNC

$11.19

$11.19 - $11.19

$11.19

$9.51

$9.51 - $9.51

$9.51

Part Number: RAAR3-106,4/UNC
Size: 1/4" O.D. Tubing
Clamp Body: Aluminum
Weld Plate: Carbon Steel
Cover Plate: Zinc-Plated
Bolt: Zinc-Plated
Temperature: -40F to 572F
Thread: 1/4-20 UNC
Series: Light Series
DIN Specification: DIN3015
Size (Group): 1
Manufacturer: RSB

Product Details

Our DIN 3015 Light Series Weld-On Clamp with an aluminum clamp body provides secure, reliable support for tubing and piping in high-temperature applications. Designed to meet DIN 3015 standards, the lightweight aluminum body offers excellent heat resistance and durability. The weld-on base provides a strong, permanent mounting solution for hydraulic lines, process piping, and industrial systems operating in demanding environments.

Downloads

Weld On Aluminum Body Clamp Data Sheet
