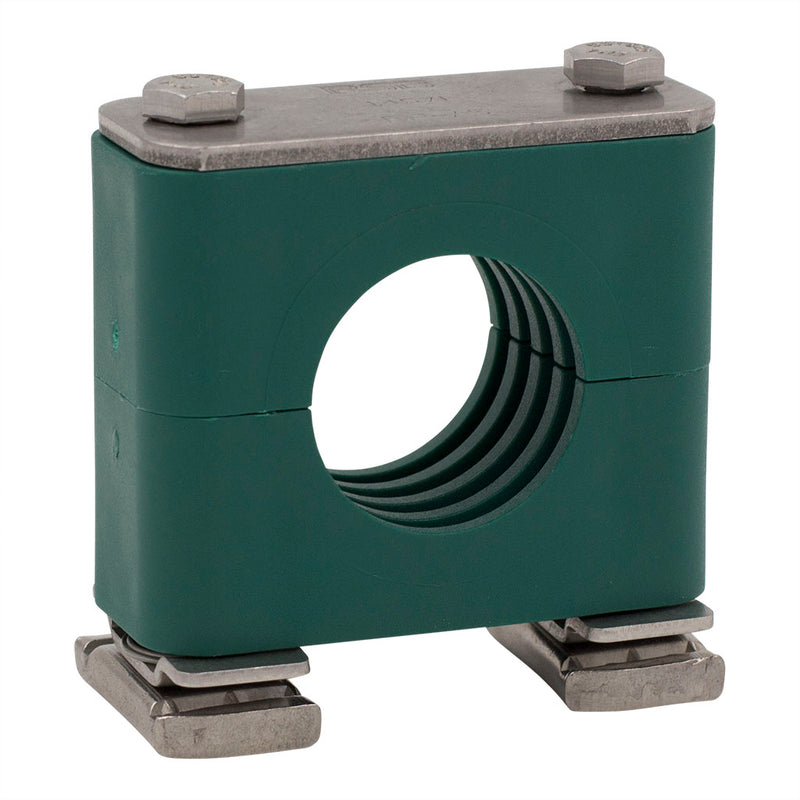

2-3/4" Tubing Clamp Light Series Strut Mount 316 Stainless Steel Hardware

Name: 2-3/4" Tubing Clamp Light Series Strut Mount 316 Stainless Steel Hardware
Brand: The Clamp Co
SKU: RAPR11-770/1.4571/UNC
Price: 61.06 USD
Availability: InStock

SKU RAPR11-770/1.4571/UNC

$71.83

$71.83 - $71.83

$71.83

$61.06

$61.06 - $61.06

$61.06

Part Number: RAPR11-770/1.4571/UNC
Size: 2-3/4" O.D. Tubing
Clamp Body: Polypropylene
Strut Adapter: 316 Stainless Steel
Cover Plate: 316 Stainless Steel
Bolt: 316 Stainless Steel
Thread: 1/4-20 UNC
Series: Light Series
DIN Specification: DIN3015
Size (Group): 7
Manufacturer: RSB

Product Details

Our DIN 3015 Strut Mount Tube and Pipe Clamp provides secure, corrosion-resistant support for hydraulic tubing, piping, and industrial pipe systems on standard 1-5/8" x 1-5/8" unistrut channel. This DIN 3015 pipe clamp features a durable polypropylene clamp body with 316 stainless steel strut adapters, cover plate, and bolts. The bolt-on strut mount design allows fast installation without welding, making it ideal for demanding industrial, hydraulic, and piping applications.

Downloads

Light Series Strut Mount Clamp Data Sheet

Cross Reference
