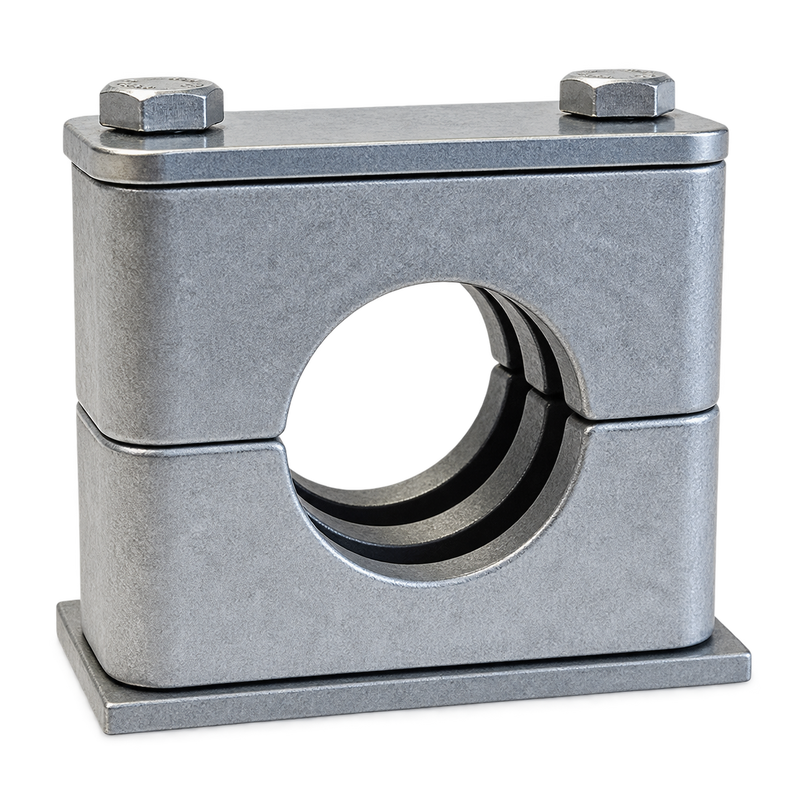

1/4" Tubing Clamp Light Series Aluminum Body 304 Stainless Steel Hardware

Name: 1/4" Tubing Clamp Light Series Aluminum Body 304 Stainless Steel Hardware
Brand: The Clamp Co
SKU: RAAR3-106,4/1.4301/UNC
Price: 21.34 USD
Availability: InStock

SKU RAAR3-106,4/1.4301/UNC

$25.10

$25.10 - $25.10

$25.10

$21.34

$21.34 - $21.34

$21.34

Part Number: RAAR3-106,4/1.4301/UNC
Size: 1/4" O.D. Tubing
Clamp Body: Aluminum
Weld Plate: 304 Stainless Steel
Cover Plate: 304 Stainless Steel
Bolt: 304 Stainless Steel
Temperature: -40F to 572F
Thread: 1/4-20 UNC
Series: Light Series
DIN Specification: DIN3015
Size (Group): 1
Manufacturer: RSB

Product Details

Our DIN 3015 Light Series Weld-On Clamp features a lightweight aluminum clamp body with durable 304 stainless steel hardware for secure tubing and pipe support in high-temperature and industrial environments. Manufactured to meet DIN 3015 standards, this aluminum tube clamp delivers excellent heat resistance, durability, and reliable performance for hydraulic lines, process piping, and industrial piping systems.

The weld-on mounting base provides a strong, permanent installation where dependable pipe and tube support is essential. With a heat-resistant aluminum clamp body and durable 304 stainless steel hardware, this DIN 3015 weld-on clamp is ideal for hydraulic systems, process equipment, machinery, and demanding industrial applications.

Downloads

Weld On Aluminum Body Clamp Data Sheet

Cross Reference

Stauff Part Number: SP1064AALDPASUW4
